MPMC UNIT-1 Introduction and Register organization of 8086


   MICROPROCERSSORS

AND

  MICROCONTROLLERS

     REGULATION /BRANCH :R16/R18  ECE/EEE



                                      UNIT-I

INTRODUCTION

What is a Microprocessor?

The word comes from the combination micro and processor.

Processor means a device that processes whatever. In this context processor means a device that processes numbers, specifically binary numbers, 0’s and 1’s.

To process means to manipulate. It is a general term that describes all manipulation. It means to perform certain operations on the numbers that depend on the microprocessor’s design.

What about micro?

Micro is a new addition.

In the late 1960’s, processors were built using discrete elements. These devices performed the required operation, but were too large and too slow.

In the early 1970’s the microchip was invented. All of the components that made up the processor were now placed on a single piece of silicon. The size became several thousand times smaller and the speed became several hundred times faster.

The “Micro”Processor Was born.

Microprocessor

The microprocessor is a programmable device that takes  in numbers, performs on them arithmetic or logical operations according to the program stored in memory and then produces other numbers as a result.

A microprocessor, as the term has come to be known, is a general-purpose digital computer CPU. Popularly known as a “CPU on a Single chip.”

A microprocessor CPU, contains an ALU, a PC, a SP, some working registers, a clock timing circuit, and interrupt circuits.


The microprocessor is made up of 3 main units.

–The Arithmetic/Logic Unit (ALU)

–The Control Unit.

–An array of registers for holding data while it is being manipulated.

To make a complete microcomputer, one must add memory, usually ROM and RAM, memory decoders,  an oscillator, and a number of I/O devices. Additionally, special-purpose devices, such as interrupt handlers, or counters, may be added.




Microcontroller

v Microcontroller is a true computer on a chip. The design incorporates all of the features found in a microprocessor   CPU:ALU, PC, SP, and registers.

v It also has added the other features needed to make a complete computer: ROM, RAM, parallel I/O, serial I/O, counters, and a clock circuit.

v Like the microprocessor, a microcontroller is a general- purpose device, but one which is meant to fetch data, perform limited calculations on that data, and control its environment based on those calculations. The prime use of microcontroller is to control the operation of a machine using a fixed program that is stored in ROM and that does not change over the lifetime of the system.

Most of the Embedded Systems are built around a microprocessor or a microcontroller.



The application areas and the products in the embedded domain are countless.

1.    Consumer Electronics: Camcorders, Cameras etc..

2. Household appliances: Washing machine, Refrigerator, Air conditioner, Oven etc…

3.  Automotive industry: Anti-lock breaking system (ABS), engine control.

4.Home automation & security systems: Air conditioners, sprinklers, fire alarms,                 CCTV,  biometric systems etc.

5.   Telecom: Cellular phones, telephone switches, Web cameras, Muxs etc..

6.   Computer peripherals: Printers, scanners etc.

7.   Computer networking systems: Network routers and switches, bridges, frame relay           switches etc.

8.  Medical electronics: EEG, ECG machines, BP measuring devices, X-ray scanners etc.

9. Banking & Retail: Automatic teller machines, point of sales, smart cards etc.

10. Instrumentation: Measuring equipment such as weight ,temperature, pressure,                   humidity, voltage, current etc and spectrum analyzer, logic analyzer & protocol                analyzer etc..

Microprocessor VS Microcontroller




8086 ARCHITECTURE

8086 Architecture –Functional Diagram

In 1978, Intel designed the 8086 processor. The Intel 8086 is a 16-bit microprocessor, implemented in N-channel, depletion load, silicon gate technology (HMOS), and packaged it in a 40 pin dual in line package.



FEATURES OF 8086 MICROPROCESOR

v The 8086 is a 16-bit microprocessor. The term "l6-bit" means that its Arithmetic logic      unit, internal registers and most of its instructions are designed to work with16-bit            binary words.

v It is a 40 pin device which operates at a clock frequency of 5 MHz.

v It require +5V DC power supply.

v The 8086 has a 16-bit data bus, so it can read data from or write data to memory and ports either 16 bits or 8 bits at a time.

v The 8086 has a 20-bit address bus, so it can directly access 220 or 1,048,576 (1MB) memory locations. Each of the 1048576 memory locations is byte wide.
Therefore, sixteen-bit words are stored in two consecutive memory locations.

v The 8086 can generate 16-bit I/O address; hence it can access 216 i.e 65536 I/O ports.

v The 8086 has fourteen 16-bit registers.

v The 8086 has multiplexed address and data bus which reduces the number of pins needed, but does slow down the transfer of data (drawback).

v The 8086 requires one phase clock with a 33% duty cycle to provide optimized internal timing.

v The Intel 8086 is designed to operate in two modes, namely the minimum mode and the maximum mode.

v The Intel 8086 supports multiprogramming. In multiprogramming, the code for two or more processes is in memory at the same time and is executed in a time-multiplexed fashion.

v An interesting feature of the 8086 is that it fetches up to six instruction bytes from memory and queue stores them in order to speed up instruction execution.

v The 8086 provides powerful instruction set with the following addressing modes: Register, immediate, direct, indirect etc..

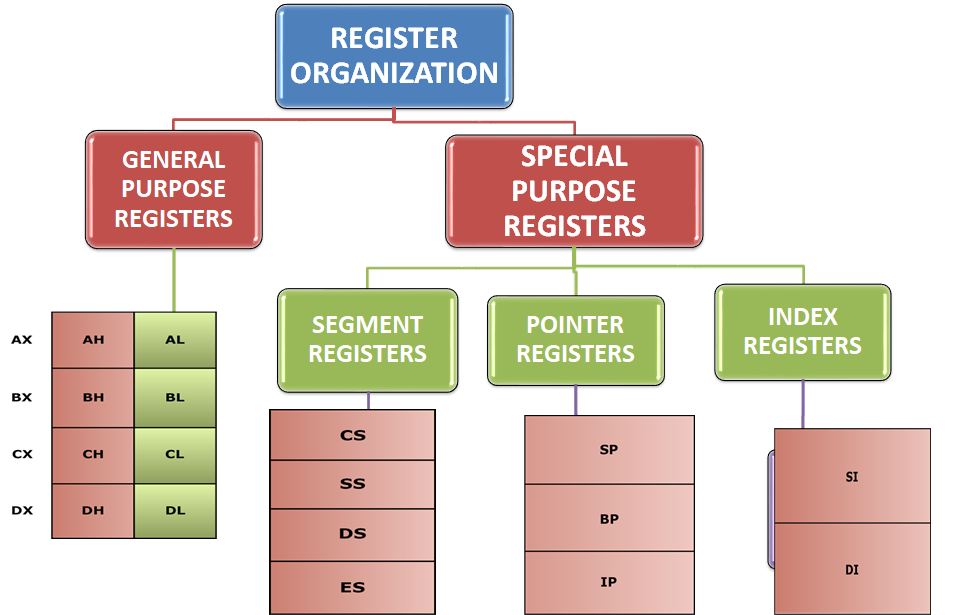

REGISTER ORGANIZATION

8086 has a powerful set of registers known as general purpose and special purpose registers. All of them are 16-bit registers and are categorized into two groups.

1) General purpose registers

2) Special purpose registers






1)   General Purpose Registers

The general purpose registers, can be used as either 8-bit registers or 16-bit registers. They may be either used for holding data, variables and intermediate results temporarily or for other purposes like a counter or for storing offset address for some particular addressing modes etc.




v The 8086 has four 16-bit general purpose registers labeled AX, BX, CX and DX.

v Each 16-bit general purpose register can be split into two 8-bit registers.

v The letters L and H specify the lower and higher bytes of a particular register.

Eg: BH is the higher byte (8-bits) of the BX and BL is the lower byte (8-bits) of the BX

v The letter X is used to specify the complete 16-bit register.


AX Register (Accumulator):

AX is used as 16-bit accumulator, with the lower 8-bits of AX designated as AL and higher 8-bits as AH. AL can be used as an 8-bit accumulator for 8-hit operations. This is the most important general purpose register having multiple functions.

 BX Register(Base Register):

The register BX is used as an offset storage for forming physical addresses in case of certain addressing modes.

 CX Register(Counter):

The register CX is also used as a default counter in case of string and loop instructions.

 DX Register(Destination Register):

DX register is a general purpose register which may be used as an implicit operand or destination in case of a few instructions.



2) Special purpose registers

The special purpose registers are used as segment registers, pointers, index registers or as offset storage registers for particular addressing modes.

Segment Registers:

Unlike 8085, the 8086 addresses a segmented memory. The complete 1 MB memory, which the

8086 addresses, is divided into 16 logical segments. Each segment thus contains 64 Kbytes of memory.


There are four segment registers, viz. Code Segment Register (CS), Data Segment Register (DS), Extra

Segment Register (ES) and Stack Segment Register (SS).

These are used to hold the upper 16-bits of the starting addresses of the four memory segments, on which 8086 works at a particular time.

For example, the value in CS identifies the starting address of 64 K-byte segment known as code segment.

The code segment (CS) register is used for addressing a memory location in the code segment of the memory, where the executable program is stored.

 The data segment (DS) register points to the data segment of the memory, where the data is resided.

The extra segment (ES) also refers to a segment which essentially is another data segment of the memory. Thus, the extra segment also contains data.

The stack segment (SS) register is used for addressing stack segment of memory i.e. memory which is used to store stack data.



Pointers Registers:


The pointers contain offset within the particular segments. The pointers IP, BP and SP usually contain offsets within the code (JP), and stack (BP & SP) segments.

 They hold the offset within the code, data and stack segments, respectively.

Index Registers:

The index registers DI and SI are used as a general purpose registers as well as for offset storage in case of indexed, based indexed and relative based indexed addressing modes.



The register SI is generally used to store the offset of source data in data segment while the register DI is used to store the offset of destination in data or extra segment. The index registers are particularly useful for string manipulations.

Flag Register:

A flag is a flip-flop which indicates some condition produced by the execution of an instruction or controls certain operations of the EU. The 8086 flag register contents indicate the results of computations in the ALU, It also contains some flag bits to control the CPU operations.


 The 16-bit flag register is divided into two parts, viz.

 (a) Condition code or status flags- The condition code flag register is the lower byte of the 16-bit flag register along with the overflow flag. This flag is identical to the 8085 flag register, with an additional overflow flag, which is not present in 8085. This part of the flag register of 8086 reflects the results of the operations performed by ALU.



SF-Sign Flag: This flag is set when the result of any computation is negative. For signed computations, the sign flag equals the MSB of the result.

 ZF-Zero Flag :This flag is set if the result of the computation or comparison performed by the previous Instruction/instructions is zero.

 PF-Parity Flag :This flag is set to 1 if the lower byte of the result contains even number of 1s.

 CF-Carry Flag: This flag is set when there is a carry out of MSB in case of addition or a borrow in case of subtraction.

 AC-AuxiUary Carry Flag: This is set if there is a carry from the lowest nibble, i.e. bit three, during addition or borrow for the lowest nibble, i.e. bit three, during subtraction.

 OF-Overflow Flag: This flag is set if an overflow occurs, i.e. if the result of a signed operation is large enough to be accommodated in a destination register. when there is a carry into the MSB and no carry out of the MSB or vice-versa. For subtraction, it is set when the MSB needs a borrow and there is no borrow from the MSB, or vice-versa.



(b) Machine control flags- The control flag register is the higher byte of the flag register of 8086. It contains three flags, viz. direction flag (D), interrupt flag (I) and trap flag (T).

TF-Trap Flag :One way to debug a program is to run the program one instruction at a time and see the contents of used registers and memory variables after execution of every instruction. This process is called 'single stepping' through a program, Trap flag is used for single stepping through a program. If this flag is set  the processor enters the single step execution mode. In other words, a trap interrupt is generated after execution of each instruction. The processor executes the current instruction and the control is transferred to the Trap interrupt service routine.

IF-Interrupt Flag If this flag is set, the maskable interrupts are recognized by the CPU. otherwise they are ignored.

 DF-Direct ion Flag This is used by string manipulation instructions. If this flag bit is ‘0’ the string is processed beginning from the lowest address to the highest address, i.e. auto incrementing mode.

Otherwise, the string is processed from the highest address towards the lowest address, i.e. auto decrementing mode.
